CURR SENSE XFMR 110A T/H

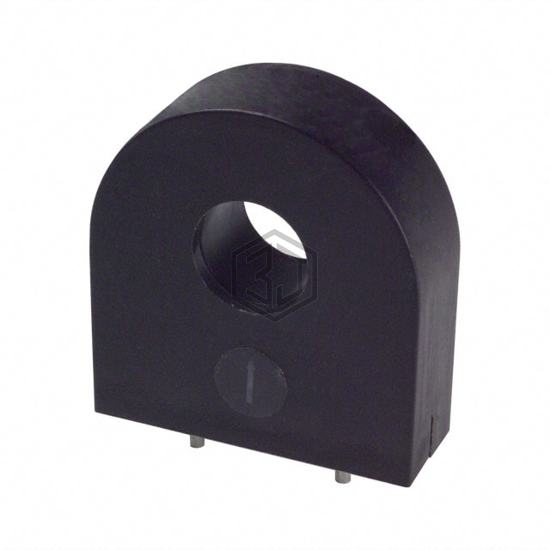

CST206-1A is a Current Sense Transformers manufactured by Triad Magnetics. CURR SENSE XFMR 110A T/H. Key specifications: mounting type Through Hole, current rating (amps) 110 A, size / dimension 1.075" L x 0.400" W (27.31mm x 10.16mm), termination style PC Pin.
In Stock: 1,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 20kHz ~ 200kHz |
| Type | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 110 A |
| Inductance | 14 mH |
| ET (Volt-Time) | 2000VµS |
| Turns Ratio - Primary:Secondary | - |
| Current Ratio | 100:1 |
| DC Resistance (DCR) | 580mOhm Max |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Height - Seated (Max) | 1.225" (31.12mm) |
| Termination Style | PC Pin |
Submit your RFQ for CST206-1A and get a quote within 24 hours.
