CURR SENSE XFMR 1:200 10A SMD

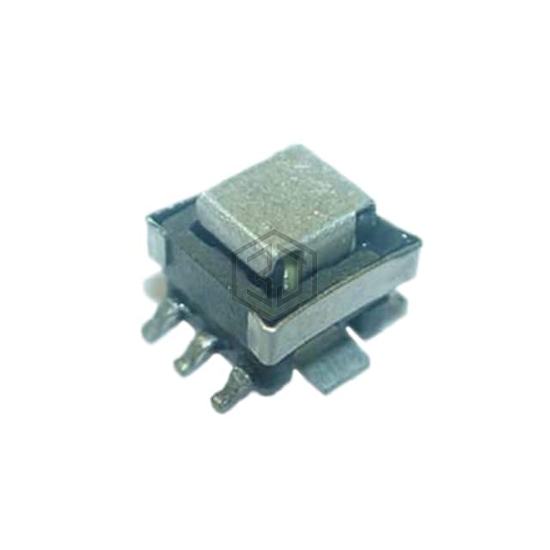

CSE5-100201 is a Current Sense Transformers manufactured by Triad Magnetics. CURR SENSE XFMR 1:200 10A SMD. Key specifications: mounting type Surface Mount, current rating (amps) 10 A, size / dimension 0.272" L x 0.303" W (6.90mm x 7.70mm), termination style Gull Wing.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 250kHz Min |
| Type | Invasive |
| Current Rating (Amps) | 10 A |
| Inductance | 80 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:200 |
| Current Ratio | - |
| DC Resistance (DCR) | 550mOhm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.272" L x 0.303" W (6.90mm x 7.70mm) |
| Height - Seated (Max) | 0.210" (5.33mm) |
| Termination Style | Gull Wing |
Submit your RFQ for CSE5-100201 and get a quote within 24 hours.
