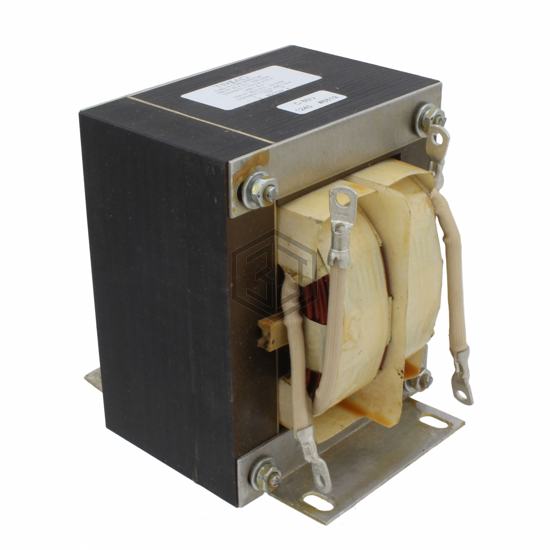

C-80U - Triad Magnetics - Fixed Inductors

C-80U

Triad Magnetics

FIXED IND 24MH 20A 25 MOHM CHASS

C-80U is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 24MH 20A 25 MOHM CHASS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 20 A.

In Stock: 17

Product Attributes

AttributeValue
Product StatusActive
TypeWirewound
Material - Core-
Inductance24 mH
Tolerance-20%, +50%
Current Rating (Amps)20 A
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)25mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test120 Hz
Features-
Mounting TypeChassis Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension4.562" L x 5.500" W (115.87mm x 139.70mm)
Height - Seated (Max)5.312" (134.92mm)

Frequently Asked Questions

C-80U is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 24MH 20A 25 MOHM CHASS

The mounting type of C-80U is Chassis Mount.

The operating temperature range of C-80U is -40°C ~ 85°C.

The package type of C-80U is Nonstandard.

The shielding of C-80U is Unshielded.
