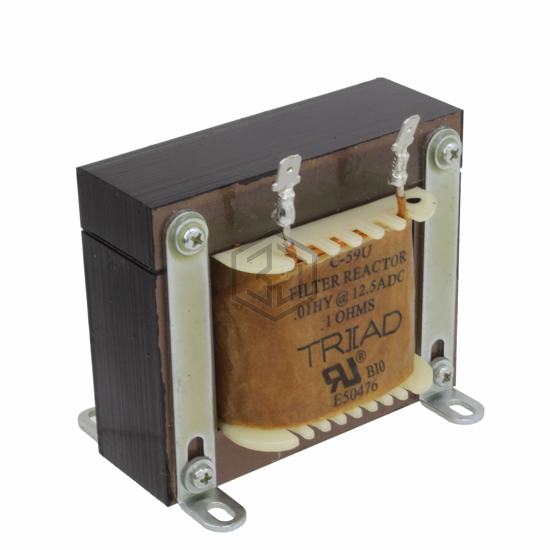

FIXED IND 10MH 12.5A 100 MOHM
C-59U is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 10MH 12.5A 100 MOHM. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 12.5 A.
In Stock: 463
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 mH |
| Tolerance | -20%, +50% |
| Current Rating (Amps) | 12.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 120 Hz |
| Features | - |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 4.125" L x 3.000" W (104.77mm x 76.20mm) |
| Height - Seated (Max) | 3.500" (88.90mm) |
Submit your RFQ for C-59U and get a quote within 24 hours.
