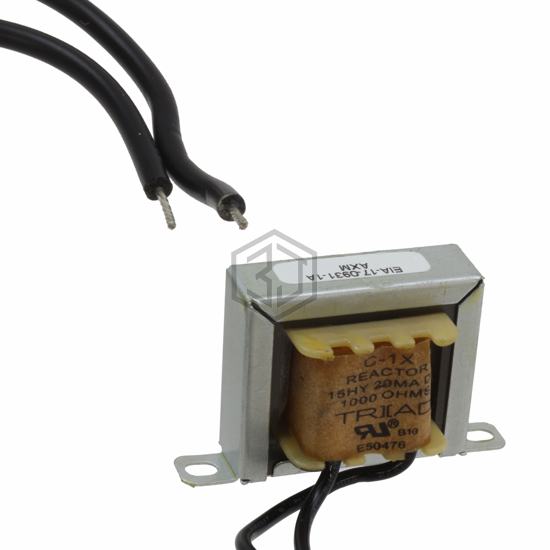

FIXED IND 15H 20MA 1 KOHM CHASS
C-1X is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 15H 20MA 1 KOHM CHASS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 20 mA.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 15 H |
| Tolerance | -20%, +50% |
| Current Rating (Amps) | 20 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1kOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 120 Hz |
| Features | - |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 2.062" L x 1.250" W (52.37mm x 31.75mm) |
| Height - Seated (Max) | 1.187" (30.15mm) |
Submit your RFQ for C-1X and get a quote within 24 hours.
