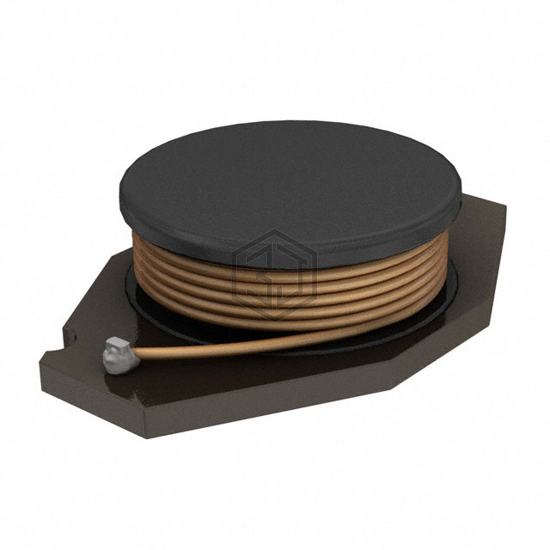

FIXED IND 10UH 2A 70 MOHM SMD
AX97-20100 is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 10UH 2A 70 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 2 A.
In Stock: 9,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.530" L x 0.370" W (13.46mm x 9.40mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for AX97-20100 and get a quote within 24 hours.
