FIXED IND 10UH 1A 220 MOHM SMD

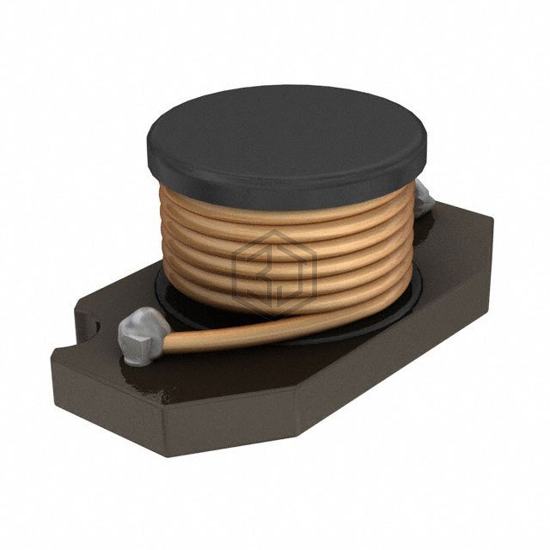

AX97-10100 is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 10UH 1A 220 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.287" L x 0.188" W (7.30mm x 4.78mm) |
| Height - Seated (Max) | 0.127" (3.23mm) |
Submit your RFQ for AX97-10100 and get a quote within 24 hours.
