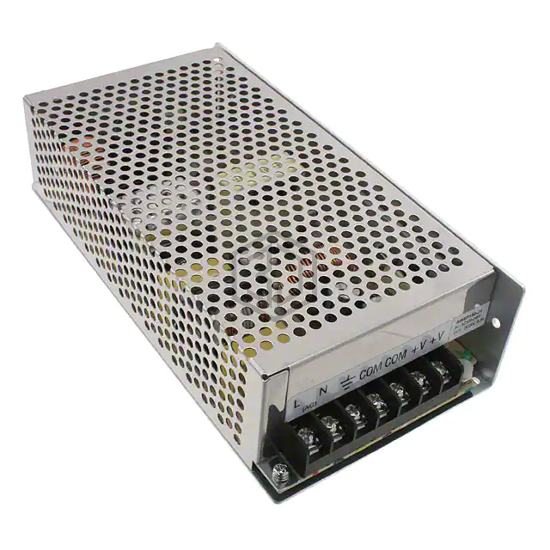

AC/DC CONVERTER 5V 150W
AWSP150-5 is a AC DC Converters manufactured by Triad Magnetics. AC/DC CONVERTER 5V 150W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 88 ~ 264 VAC, size / dimension 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 88 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 30 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 75% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) |
| Approval Agency | TUV, UR |
| Standard Number | - |
Submit your RFQ for AWSP150-5 and get a quote within 24 hours.
