AC/DC CONVERTER 24V 50W

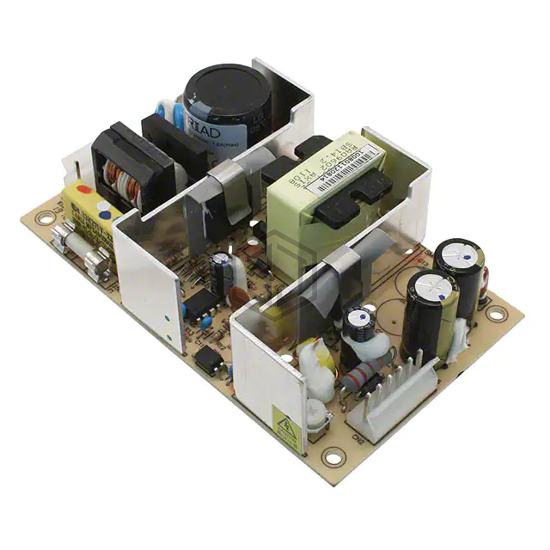

ALS50-24 is a AC DC Converters manufactured by Triad Magnetics. AC/DC CONVERTER 24V 50W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 55°C (With Derating), voltage - input 90 ~ 260 VAC, 120 ~ 370 VDC, size / dimension 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm).
In Stock: 83
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 260 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 50W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 70% |
| Operating Temperature | 0°C ~ 55°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
| Approval Agency | TUV, UR |
| Standard Number | - |
Submit your RFQ for ALS50-24 and get a quote within 24 hours.
