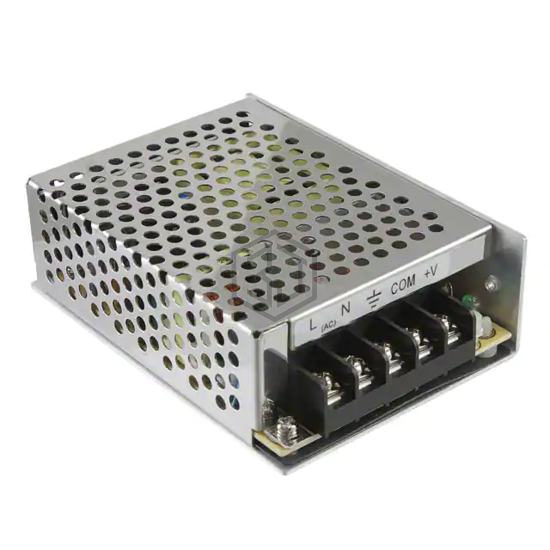

AC/DC CONVERTER 24V 65W
AEU65-240 is a AC DC Converters manufactured by Triad Magnetics. AC/DC CONVERTER 24V 65W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm).
In Stock: 111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.7 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 65W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 81% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
| Approval Agency | CB, CE, TUV, UR |
| Standard Number | - |
Submit your RFQ for AEU65-240 and get a quote within 24 hours.
