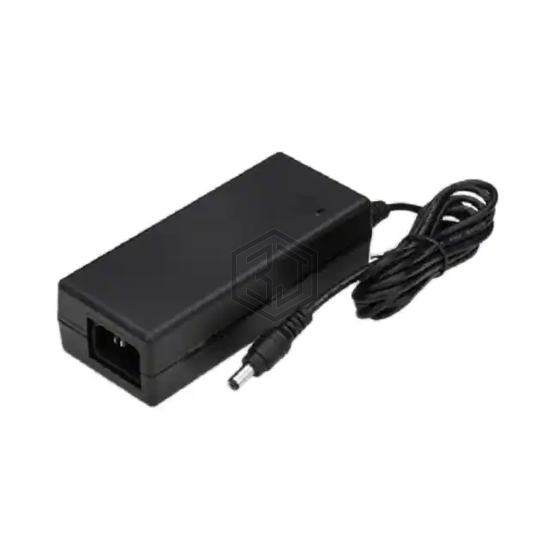

AC/DC DESKTOP ADAPTER 18V 90W
L6R90D-180-C6 is a AC DC Desktop, Wall Adapters manufactured by Tri-Mag, LLC. AC/DC DESKTOP ADAPTER 18V 90W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 5A, size / dimension 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm).
In Stock: 7,006
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 18V |
| Current - Output (Max) | 5A |
| Power (Watts) | 90 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C6 |
| Features | - |
| Size / Dimension | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) |
| Approval Agency | CE, cULus, EN, FCC, TUV |
| Standard Number | 62368-1 |
Submit your RFQ for L6R90D-180-C6 and get a quote within 24 hours.
