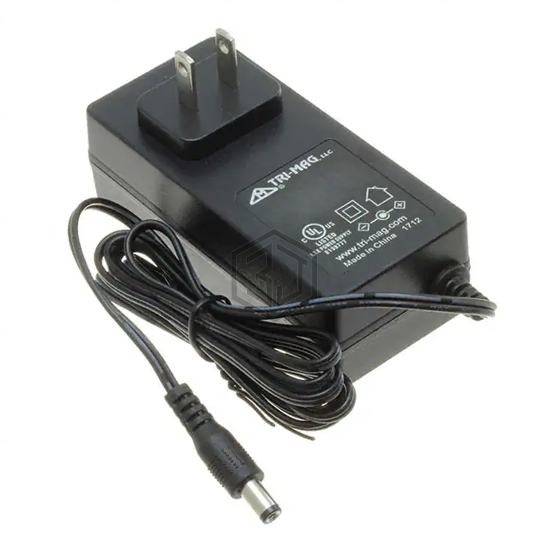

AC/DC WALL MOUNT ADAPTER 24V 30W
L6R30-240 is a AC DC Desktop, Wall Adapters manufactured by Tri-Mag, LLC. AC/DC WALL MOUNT ADAPTER 24V 30W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.25A, size / dimension 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm).
In Stock: 898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) |
| Approval Agency | cUL, FCC, UL |
| Standard Number | 62368-1 |
Submit your RFQ for L6R30-240 and get a quote within 24 hours.
