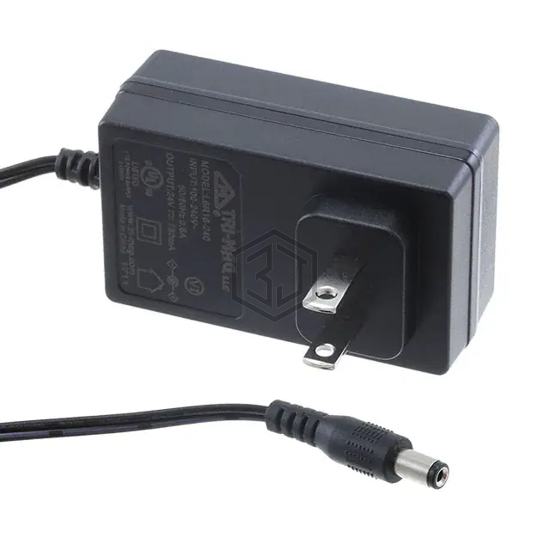

AC/DC WALL MOUNT ADAPTER 36V 18W
L6R18-360 is a AC DC Desktop, Wall Adapters manufactured by Tri-Mag, LLC. AC/DC WALL MOUNT ADAPTER 36V 18W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 500mA, size / dimension 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm).
In Stock: 472
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 500mA |
| Power (Watts) | 18 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) |
| Approval Agency | CE, cUL, UL |
| Standard Number | 60950-1 |
