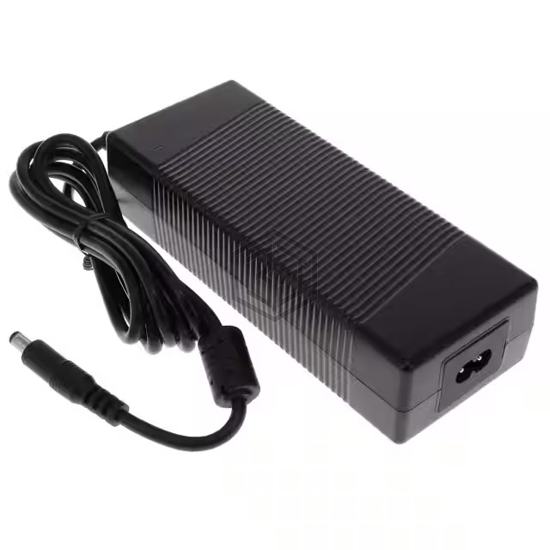

AC/DC DESKTOP ADAPTER 48V 120W
L6R120DM-480-C8 is a AC DC Desktop, Wall Adapters manufactured by Tri-Mag, LLC. AC/DC DESKTOP ADAPTER 48V 120W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 2.5A, size / dimension 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm).
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 120 W |
| No Load Power Consumption | 150mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 6.50" L x 2.60" W x 1.54" H (165.0mm x 66.0mm x 39.0mm) |
| Approval Agency | CE, cULus, EN, FCC, TUV |
| Standard Number | 60601-1 |
Submit your RFQ for L6R120DM-480-C8 and get a quote within 24 hours.
