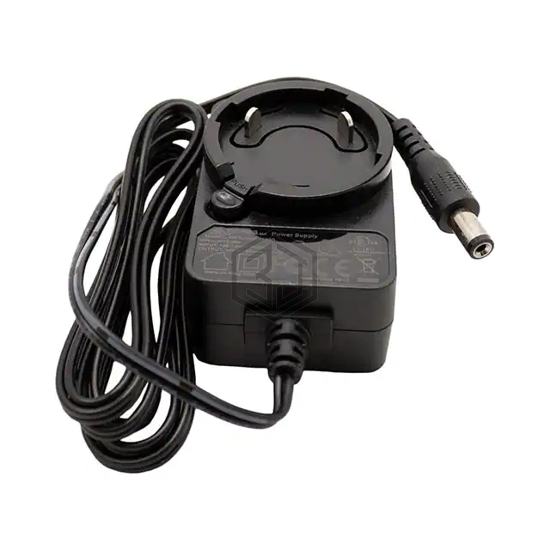

ICM12-360 - Tri-Mag, LLC - AC DC Desktop, Wall Adapters

ICM12-360

Tri-Mag, LLC

AC/DC WALL MOUNT ADAPTER 36V 11W

ICM12-360 is a AC DC Desktop, Wall Adapters manufactured by Tri-Mag, LLC. AC/DC WALL MOUNT ADAPTER 36V 11W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 300mA, size / dimension 2.32" L x 1.61" W x 1.24" H (59.0mm x 40.9mm x 31.5mm).

In Stock: 495

Product Attributes

AttributeValue
Product StatusActive
Region UtilizedInternational
FormWall Mount (Class II)
Input TypeMulti-Blade (Sold Separately)
Voltage - Input90 ~ 264 VAC
Voltage - Output36V
Current - Output (Max)300mA
Power (Watts)11 W
No Load Power Consumption100mW (Max)
PolarizationPositive Center
ApplicationsITE (Commercial)
EfficiencyLevel VI
Operating Temperature0°C ~ 40°C
Output ConnectorBarrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Cord Length59" (1.50m)
Input ConnectorNEMA 1-15P, Multi-Blade (Sold Separately)
Features-
Size / Dimension2.32" L x 1.61" W x 1.24" H (59.0mm x 40.9mm x 31.5mm)
Approval AgencycUL, FCC, UL
Standard Number62368-1

Frequently Asked Questions

ICM12-360 is a AC DC Desktop, Wall Adapters manufactured by Tri-Mag, LLC. AC/DC WALL MOUNT ADAPTER 36V 11W

The operating temperature range of ICM12-360 is 0°C ~ 40°C.

The supply voltage of ICM12-360 is 90 ~ 264 VAC.

The current rating of ICM12-360 is 300mA.

The efficiency of ICM12-360 is Level VI.
