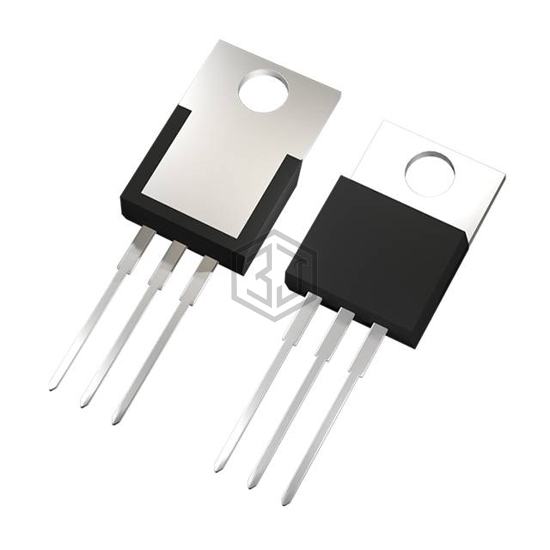

GANFET N-CH 650V 20A TO220AB
TPH3208PS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 20A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.
In Stock: 597
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | GaNFET (Cascode Gallium Nitride FET) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 13A, 8V |
| Vgs(th) (Max) @ Id | 2.6V @ 300µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 8 V |
| Vgs (Max) | ±18V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 96W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Submit your RFQ for TPH3208PS and get a quote within 24 hours.
