GANFET N-CH 650V 16A TO220AB

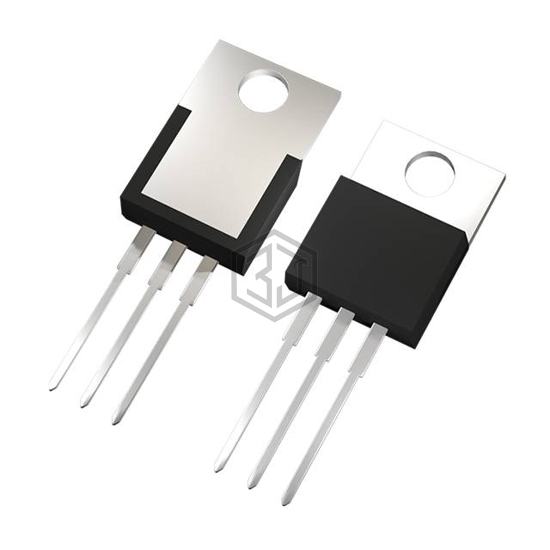

TPH3206PSB is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 16A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.
In Stock: 515
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 10A, 8V |
| Vgs(th) (Max) @ Id | 2.6V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 4.5 V |
| Vgs (Max) | ±18V |
| Input Capacitance (Ciss) (Max) @ Vds | 720 pF @ 480 V |
| FET Feature | - |
| Power Dissipation (Max) | 81W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Submit your RFQ for TPH3206PSB and get a quote within 24 hours.
