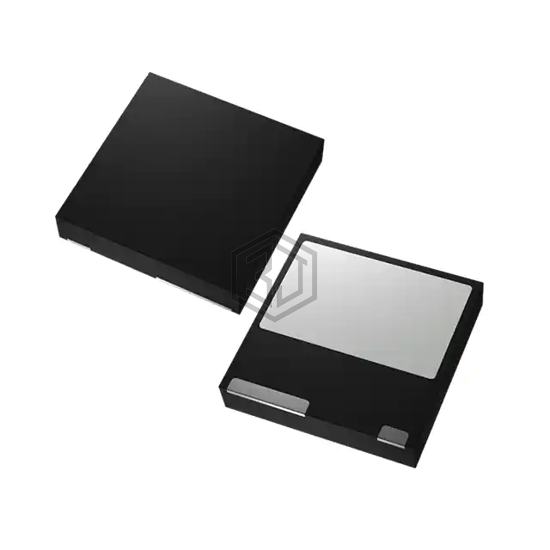

GANFET N-CH 600V 17A PQFN
TPH3206LS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 600V 17A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerDFN.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 11A, 8V |
| Vgs(th) (Max) @ Id | 2.6V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 4.5 V |
| Vgs (Max) | ±18V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 480 V |
| FET Feature | - |
| Power Dissipation (Max) | 96W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PQFN (8x8) |
| Package / Case | 3-PowerDFN |
Submit your RFQ for TPH3206LS and get a quote within 24 hours.
