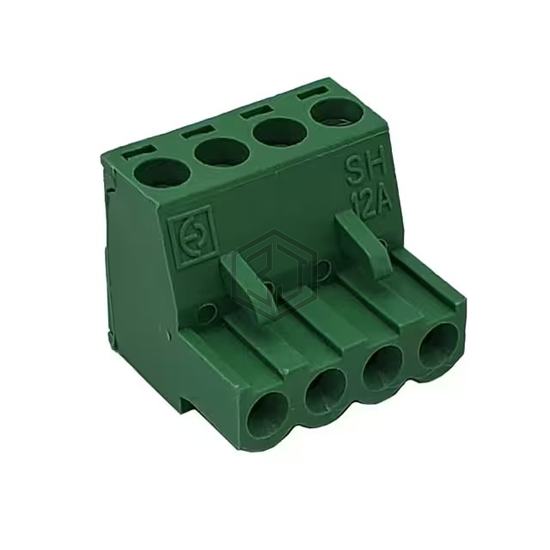

SPEAKER CONNECTOR FOR PRO-6/VC
RUSSOUND CONNECTOR is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Traktronix. SPEAKER CONNECTOR FOR PRO-6/VC. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screw - Rising Cage Clamp, number of positions 4.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 16 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for RUSSOUND CONNECTOR and get a quote within 24 hours.
