Toshiba Semiconductor and Storage
MOSFET N-CH 45V 300A 8DSOP

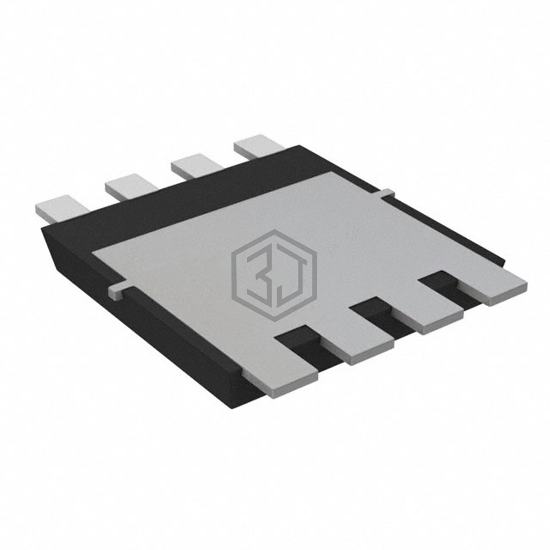

TPW1R005PL,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 45V 300A 8DSOP. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerWDFN.
In Stock: 3,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 45 V |
| Current - Continuous Drain (Id) @ 25°C | 300A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 122 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9600 pF @ 22.5 V |
| FET Feature | - |
| Power Dissipation (Max) | 960mW (Ta), 170W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DSOP Advance |
| Package / Case | 8-PowerWDFN |
Submit your RFQ for TPW1R005PL,L1Q and get a quote within 24 hours.
