Toshiba Semiconductor and Storage
MOSFET N-CH 40V 38A 8TSON

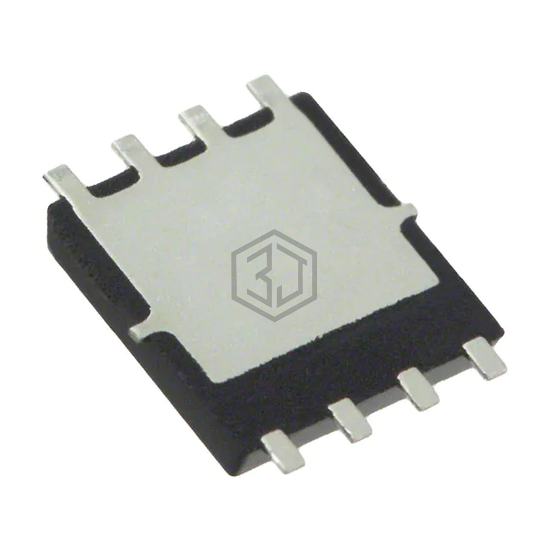

TPN7R504PL,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 40V 38A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerVDFN.
In Stock: 2,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2040 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 610mW (Ta), 61W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TSON Advance (3.1x3.1) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for TPN7R504PL,LQ and get a quote within 24 hours.
