Toshiba Semiconductor and Storage

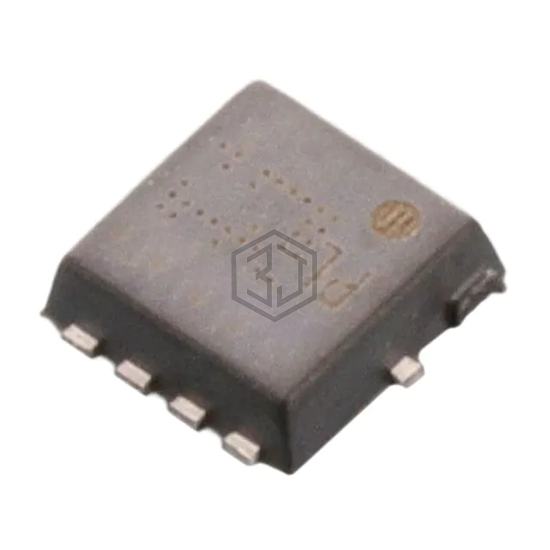

MOSFET N-CH 60V 72A 8TSON
TPN4R806PL,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 72A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerVDFN.
In Stock: 6,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 72A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 36A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 300µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2770 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 630mW (Ta), 104W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TSON Advance (3.1x3.1) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for TPN4R806PL,L1Q and get a quote within 24 hours.
