Toshiba Semiconductor and Storage
MOSFET N-CH 80V 34A 8SOP

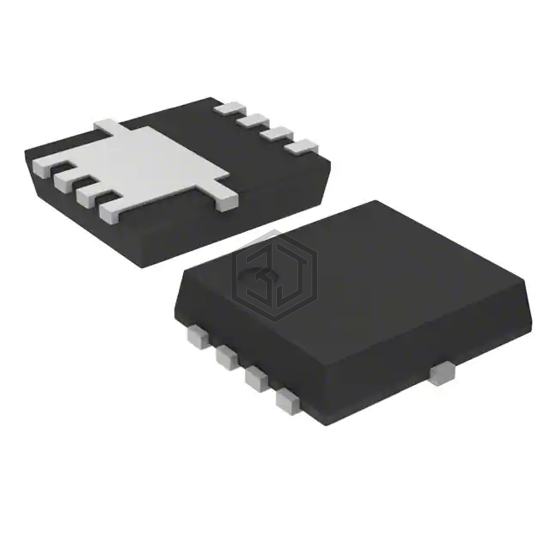

TPH8R008NH,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 80V 34A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3000 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta), 61W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for TPH8R008NH,L1Q and get a quote within 24 hours.
