Toshiba Semiconductor and Storage
UMOS9 SOP-ADV(N) PD=170W F=1MHZ

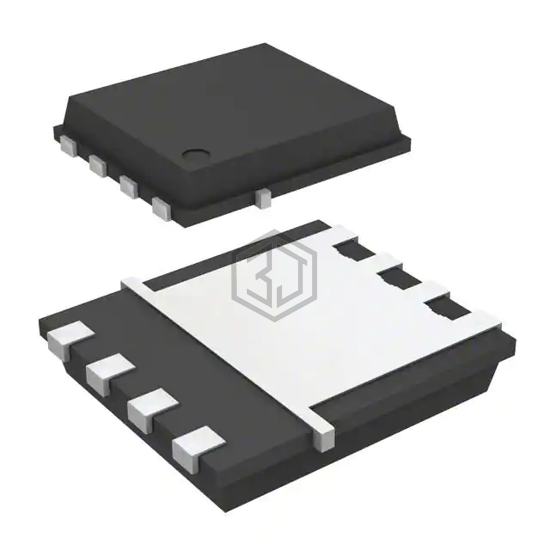

TPH2R306NH1,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. UMOS9 SOP-ADV(N) PD=170W F=1MHZ. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-PowerTDFN.
In Stock: 4,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 136A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6100 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta), 170W (Tc) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP Advance (5x5.75) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for TPH2R306NH1,LQ and get a quote within 24 hours.
