Toshiba Semiconductor and Storage
PV COUPLER; 4-PIN SO6; AECQ; ROH

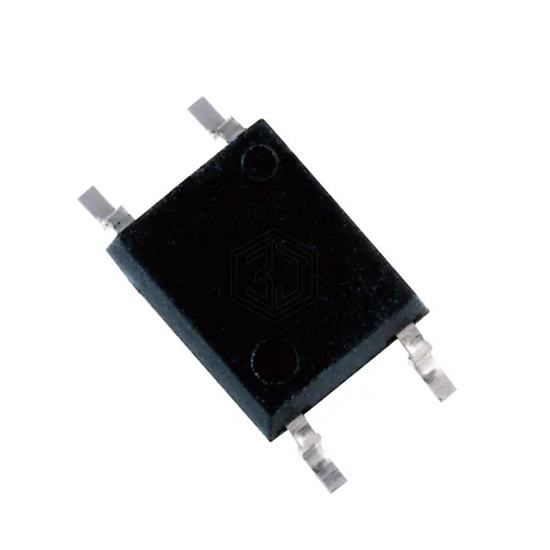

TLX9906(TPL,F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. PV COUPLER; 4-PIN SO6; AECQ; ROH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.65V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.
In Stock: 10,206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 200µs, 200µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Photovoltaic |
| Voltage - Output (Max) | 7V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 30 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-SOP |
Submit your RFQ for TLX9906(TPL,F and get a quote within 24 hours.
