Toshiba Semiconductor and Storage
TR COUPLER; SO4; AECQ; ROHS; T&R

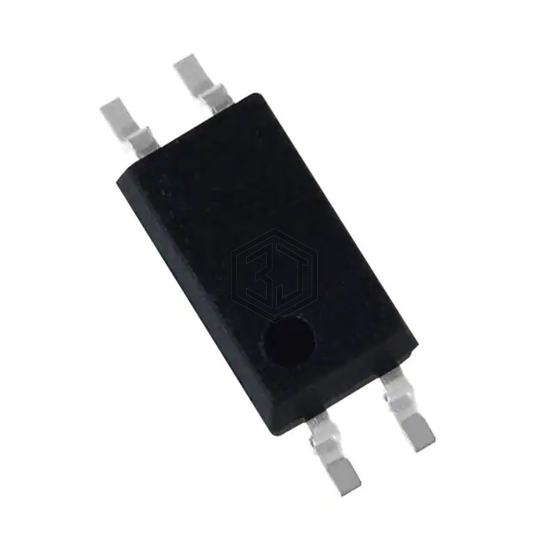

TLX9000(TPL,F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. TR COUPLER; SO4; AECQ; ROHS; T&R. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 4-SOIC (0.179", 4.55mm Width).
In Stock: 28,560
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 900% @ 5mA |
| Turn On / Turn Off Time (Typ) | 15µs, 50µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 40V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 30 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.179", 4.55mm Width) |
| Supplier Device Package | 4-SO |
Submit your RFQ for TLX9000(TPL,F and get a quote within 24 hours.
