Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT COUPLER;

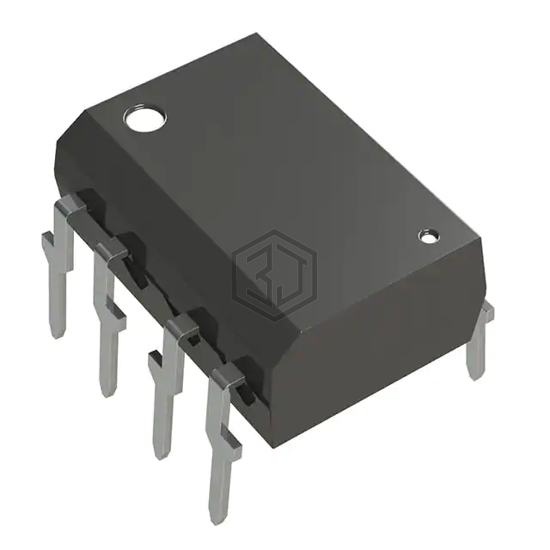

TLPN137(D4-TP1,F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT COUPLER;. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 3,918
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 10kVµs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 12ns, 3ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for TLPN137(D4-TP1,F) and get a quote within 24 hours.
