Toshiba Semiconductor and Storage

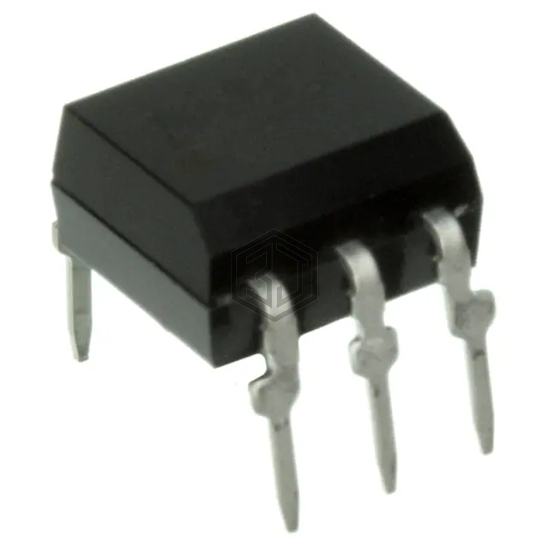

OPTOISOLATOR 4KV SCR 6DIP
TLP748J(D4,F) is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 4KV SCR 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 8,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | SCR |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 4000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 5V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 150 mA |
| Current - Hold (Ih) | 1mA |
| Turn On Time | 15µs |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | BSI, SEMKO, UR, VDE |
Submit your RFQ for TLP748J(D4,F) and get a quote within 24 hours.
