Toshiba Semiconductor and Storage

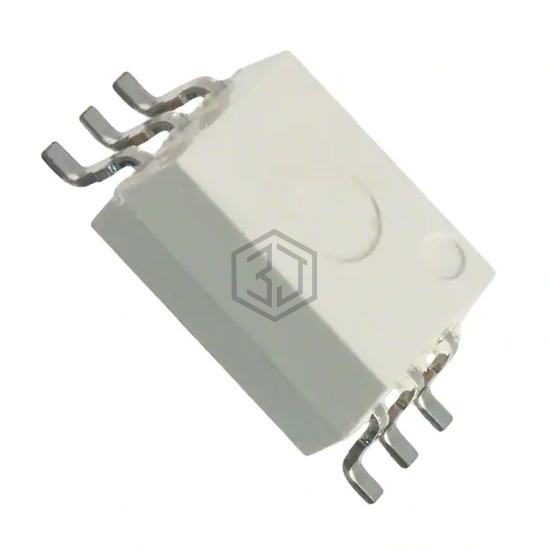

OPTOISO 5KV PUSH PULL 6DIP GW
TLP716(TP,F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV PUSH PULL 6DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 5.5V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP Gull Wing |
Submit your RFQ for TLP716(TP,F) and get a quote within 24 hours.
