Toshiba Semiconductor and Storage
X36 PB-F PHOTOCOUPLER SMD BULK J

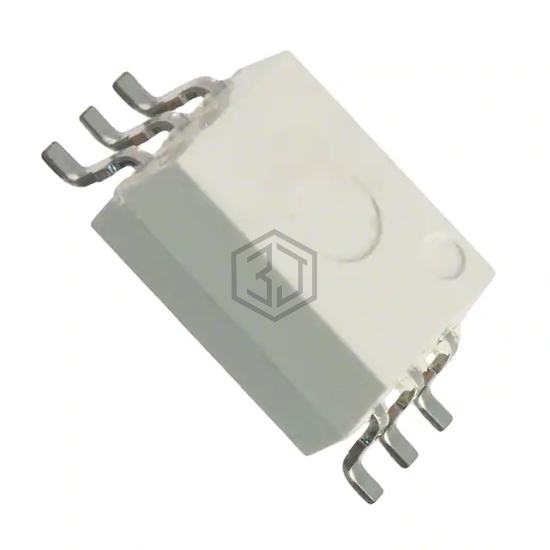

TLP701H(TP,F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER SMD BULK J. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 10V ~ 30V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 4,300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 600 mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 700ns, 700ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP |
Submit your RFQ for TLP701H(TP,F) and get a quote within 24 hours.
