Toshiba Semiconductor and Storage

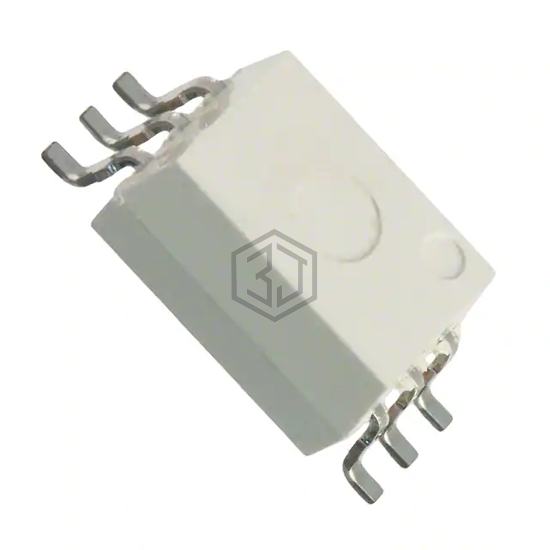

OPTOISO 5KV GATE DRIVER 6SDIP GW
TLP701(TP,F) is a Isolators - Gate Drivers manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV GATE DRIVER 6SDIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.55V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 26,286
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 700ns, 700ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Current - Output High, Low | 400mA, 400mA |
| Current - Peak Output | 600mA |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Output Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP Gull Wing |
| Approval Agency | cUL, UL |
Submit your RFQ for TLP701(TP,F) and get a quote within 24 hours.
