Toshiba Semiconductor and Storage
X36 PB-F PHOTOCOUPLER SMD GULL W

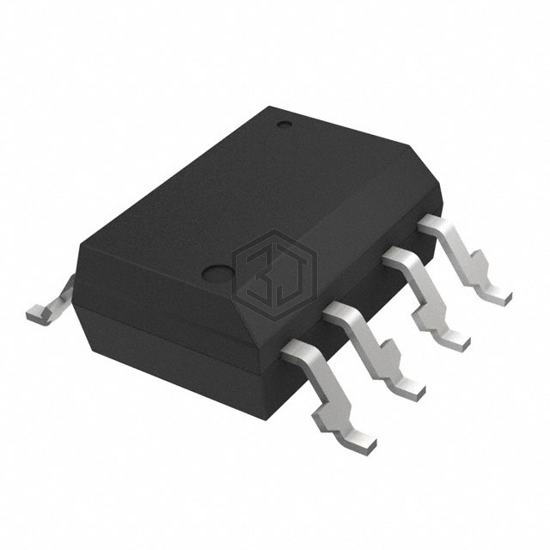

TLP352F(TP4,F) is a Isolators - Gate Drivers manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER SMD GULL W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.55V, package / case 8-SMD, Gull Wing.
In Stock: 8,024
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 15ns, 8ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Approval Agency | cUR, UR, VDE |
Submit your RFQ for TLP352F(TP4,F) and get a quote within 24 hours.
