Toshiba Semiconductor and Storage

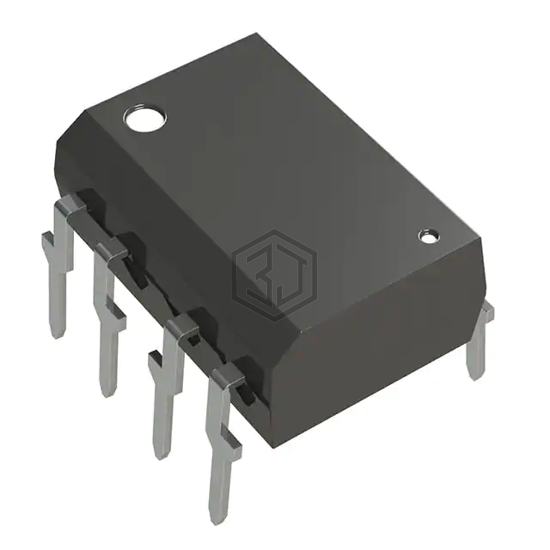

X36 PB-F PHOTOCOUPLER THRU HOLE
TLP350H(F) is a Isolators - Gate Drivers manufactured by Toshiba Semiconductor and Storage. X36 PB-F PHOTOCOUPLER THRU HOLE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.55V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 6,395
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 350ns |
| Rise / Fall Time (Typ) | 15ns, 8ns |
| Current - Output High, Low | 3mA, 3mA |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | - |
Submit your RFQ for TLP350H(F) and get a quote within 24 hours.
