Toshiba Semiconductor and Storage
OPTOISO 5KV TRIAC 6SMD

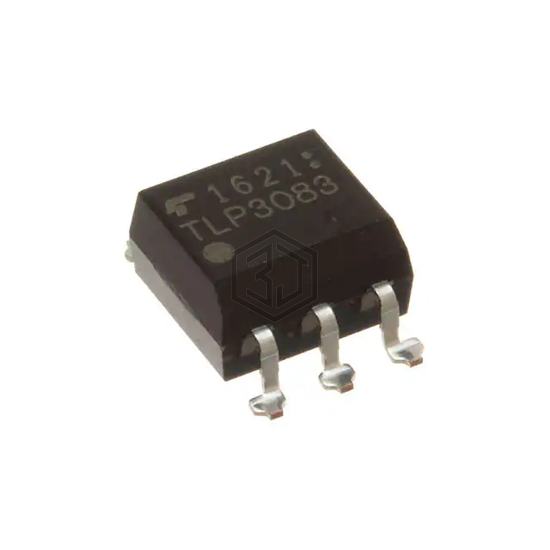

TLP3083(TP1,F is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-SMD (5 Leads), Gull Wing.
In Stock: 1,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 2kV/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Gull Wing |
| Supplier Device Package | 6-SO, 5 Lead |
| Approval Agency | CQC, CSA, cUL, UL |
Submit your RFQ for TLP3083(TP1,F and get a quote within 24 hours.
