Toshiba Semiconductor and Storage

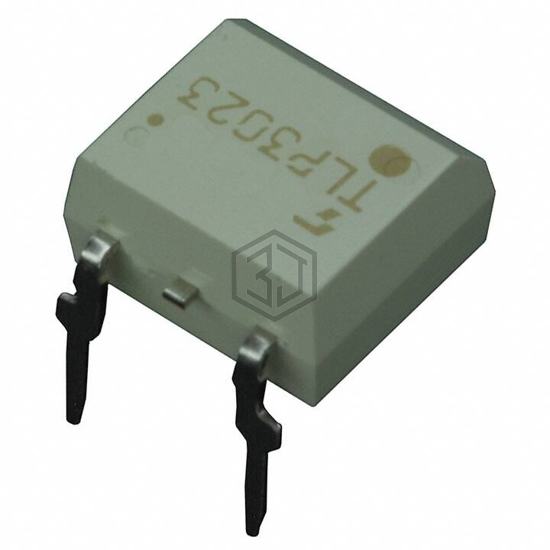

OPTOISOLATOR 5KV TRIAC 6DIP 5L
TLP3023SF is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 5KV TRIAC 6DIP 5L. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 6-DIP (0.300", 7.62mm), 5 Leads.
In Stock: 1,352
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | 200V/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Supplier Device Package | 6-DIP (Cut), 5 Lead |
| Approval Agency | BSI, SEMKO, UR |
Submit your RFQ for TLP3023SF and get a quote within 24 hours.
