Toshiba Semiconductor and Storage
OPTOISOLATOR 3.75KV TRANS SO16

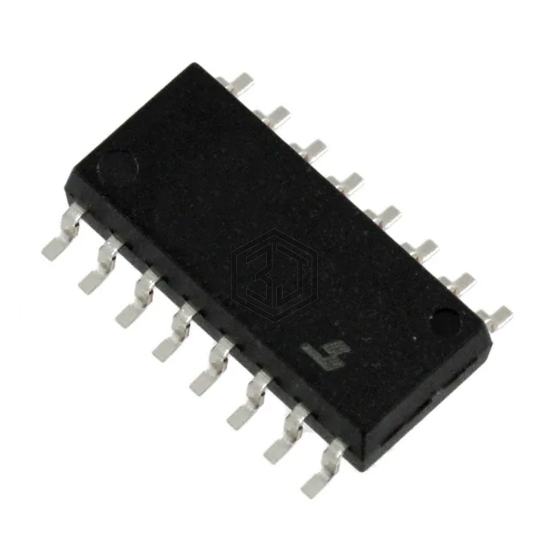

TLP292-4(V4-LA,E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 3.75KV TRANS SO16. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 16-SOIC (0.179", 4.55mm Width).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 4 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 500µA |
| Current Transfer Ratio (Max) | 600% @ 500µA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.179", 4.55mm Width) |
| Supplier Device Package | 16-SO |
Submit your RFQ for TLP292-4(V4-LA,E and get a quote within 24 hours.
