Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT OPTOCOUP

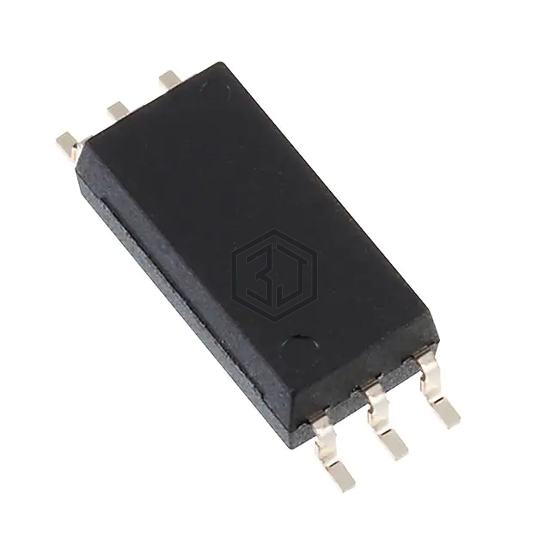

TLP2761(E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT OPTOCOUP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.295", 7.50mm Width).
In Stock: 4,323
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | AC, DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns |
| Rise / Fall Time (Typ) | 3ns, 3ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 10mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
Submit your RFQ for TLP2761(E and get a quote within 24 hours.
