Toshiba Semiconductor and Storage
X36 PB-F TRIAC COUPLER LOW TRIGG

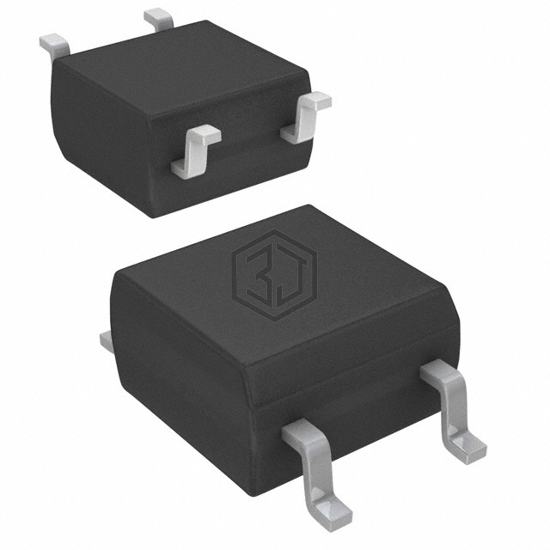

TLP267J(E is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F TRIAC COUPLER LOW TRIGG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.27V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.
In Stock: 5,608
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 3mA |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Current - Hold (Ih) | 200µA (Typ) |
| Turn On Time | 100µs |
| Voltage - Forward (Vf) (Typ) | 1.27V |
| Current - DC Forward (If) (Max) | 30 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-SOP |
| Approval Agency | CQC, cUR, UR |
