Toshiba Semiconductor and Storage

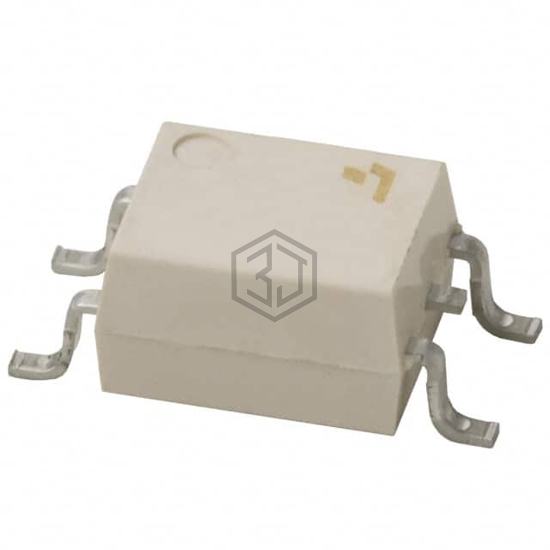

OPTOISOLATOR 3KV TRIAC 4SOP
TLP260JTPRPF is a Optoisolators - Triac, SCR Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATOR 3KV TRIAC 4SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.
In Stock: 2,879
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Current - Hold (Ih) | 1mA (Typ) |
| Turn On Time | 30µs |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Approval Agency | UR |
Submit your RFQ for TLP260JTPRPF and get a quote within 24 hours.
