Toshiba Semiconductor and Storage
X36 PB-F DRIVER COUPLER DIP 8 TH

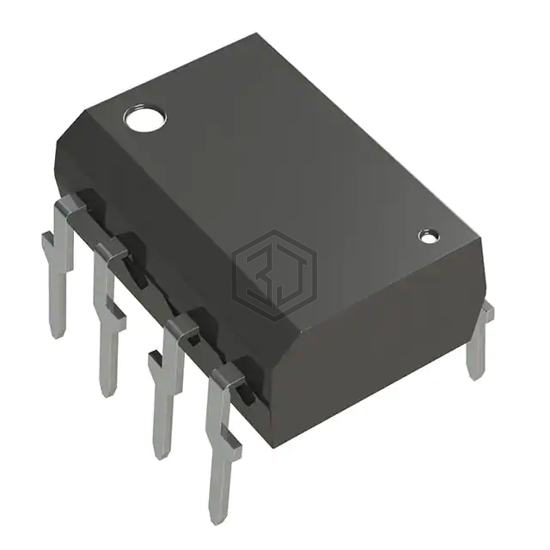

TLP250H(D4,F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. X36 PB-F DRIVER COUPLER DIP 8 TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - supply 10V ~ 30V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 4,420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 2.5 A |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for TLP250H(D4,F) and get a quote within 24 hours.
