Toshiba Semiconductor and Storage
OPTOISO 3.75KV TRANS 8SO

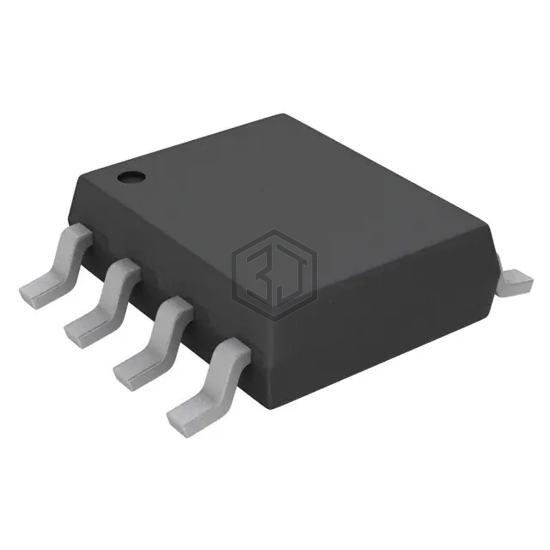

TLP2409(TP,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 3.75KV TRANS 8SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.57V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 20% @ 16mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 800ns, 800ns (Max) |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 16mA |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 25 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
Submit your RFQ for TLP2409(TP,F) and get a quote within 24 hours.
