PHOTOCOUPLER HIGH SPEED 5PIN

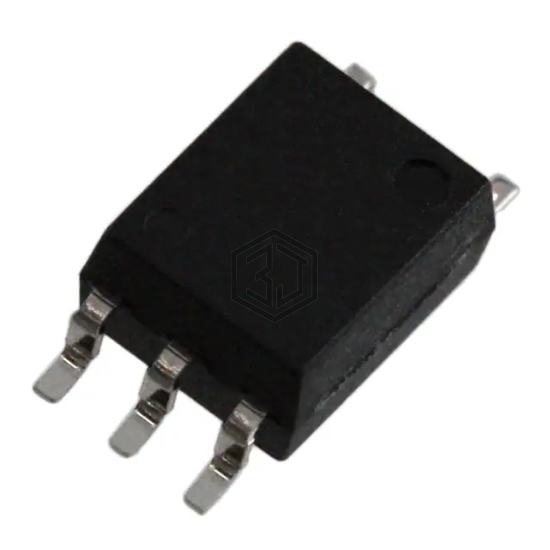

TLP2304(TPR,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. PHOTOCOUPLER HIGH SPEED 5PIN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 30V, package / case 6-SOIC (0.179", 4.55mm Width), 5 Leads.
In Stock: 2,634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 15 mA |
| Data Rate | 1MBd |
| Propagation Delay tpLH / tpHL (Max) | 550ns, 400ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
