Toshiba Semiconductor and Storage
PHOTOCOUPLER HI-SPEED LOW INPUT

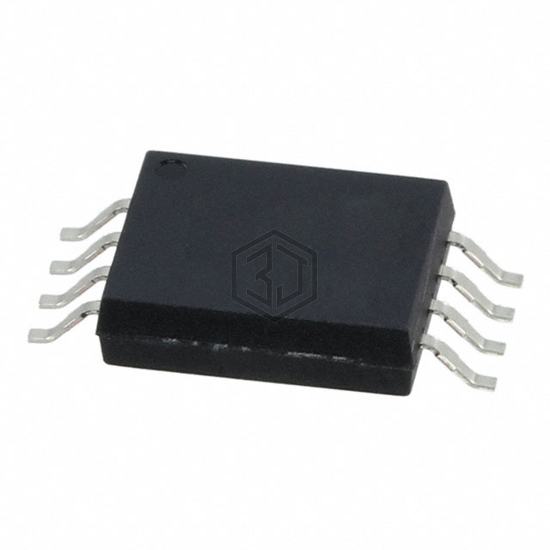

TLP2270(TP4,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. PHOTOCOUPLER HI-SPEED LOW INPUT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SOIC (0.295", 7.50mm Width).
In Stock: 3,292
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA |
| Data Rate | 20MBd |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Rise / Fall Time (Typ) | 1.3ns, 1ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 8mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SO |
Submit your RFQ for TLP2270(TP4,E and get a quote within 24 hours.
