Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT COUPLER;

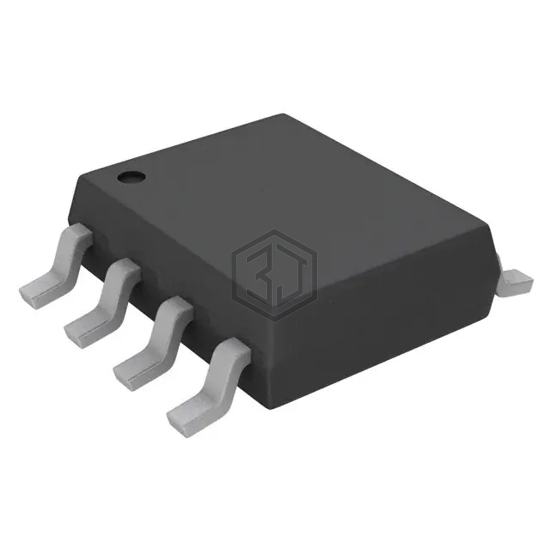

TLP2105(TP,F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT COUPLER;. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 1,488
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | 5Mbps |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
Submit your RFQ for TLP2105(TP,F) and get a quote within 24 hours.
