Toshiba Semiconductor and Storage
X36 PB PHOTOCOUPLER SO6 ROHS TAP

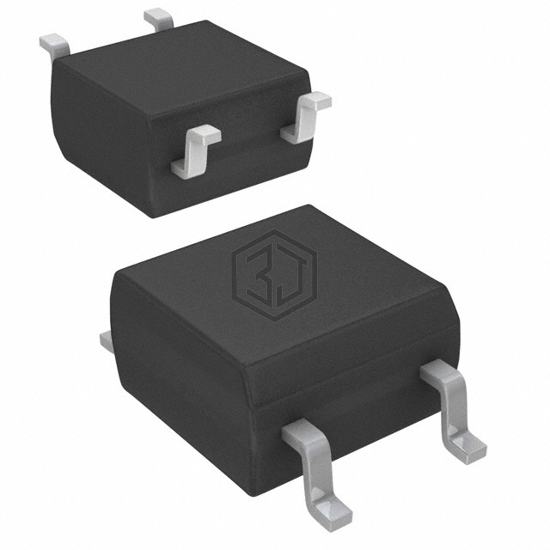

TLP185(BLL-TR,SE is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. X36 PB PHOTOCOUPLER SO6 ROHS TAP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.
In Stock: 1,369
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-SOP |
Submit your RFQ for TLP185(BLL-TR,SE and get a quote within 24 hours.
