Toshiba Semiconductor and Storage

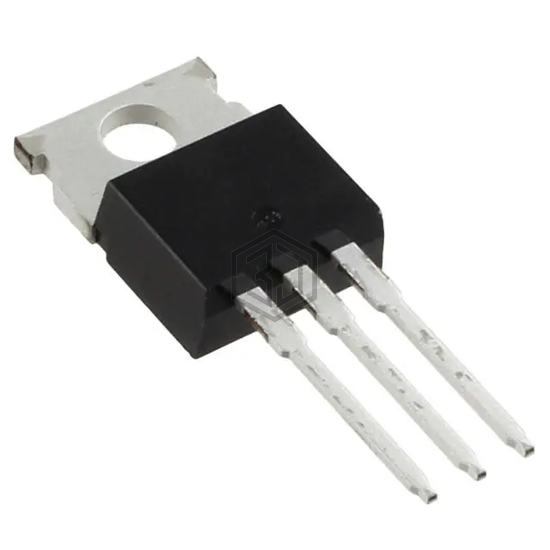

MOSFET N CH 120V 60A TO-220
TK32E12N1,S1X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N CH 120V 60A TO-220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 120 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 13.8mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000 pF @ 60 V |
| FET Feature | - |
| Power Dissipation (Max) | 98W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
Submit your RFQ for TK32E12N1,S1X and get a quote within 24 hours.
