Toshiba Semiconductor and Storage
UMOS10 TO-220AB 80V 2.4MOHM

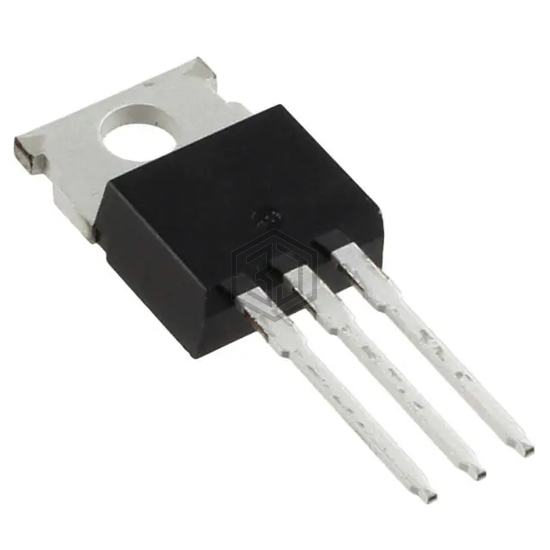

TK2R4E08QM,S1X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. UMOS10 TO-220AB 80V 2.4MOHM. Key specifications: mounting type Through Hole, operating temperature 175°C, package / case TO-220-3.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.44mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 2.2mA |
| Gate Charge (Qg) (Max) @ Vgs | 178 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13000 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
Submit your RFQ for TK2R4E08QM,S1X and get a quote within 24 hours.
