Toshiba Semiconductor and Storage

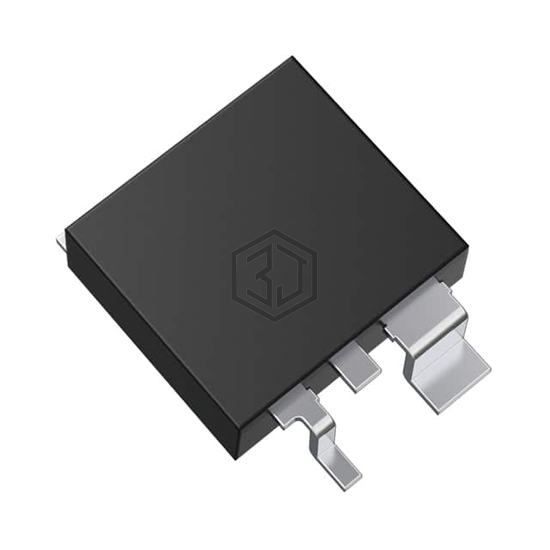

MOSFET N-CH 40V 160A TO220SM
TK1R4F04PB,LXGQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 40V 160A TO220SM. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.9mOhm @ 80A, 6V |
| Vgs(th) (Max) @ Id | 3V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 103 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 205W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-220SM(W) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Submit your RFQ for TK1R4F04PB,LXGQ and get a quote within 24 hours.
