Toshiba Semiconductor and Storage
MOSFET N-CH 650V 13.7A TO220

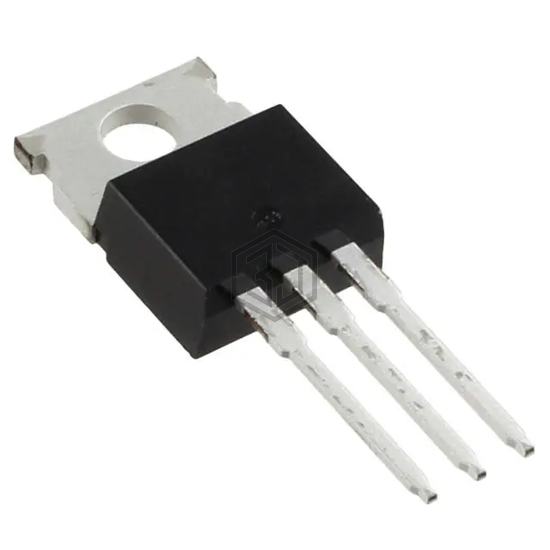

TK14E65W5,S1X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 650V 13.7A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 13.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 6.9A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 690µA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 300 V |
| FET Feature | - |
| Power Dissipation (Max) | 130W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
Submit your RFQ for TK14E65W5,S1X and get a quote within 24 hours.
