Toshiba Semiconductor and Storage

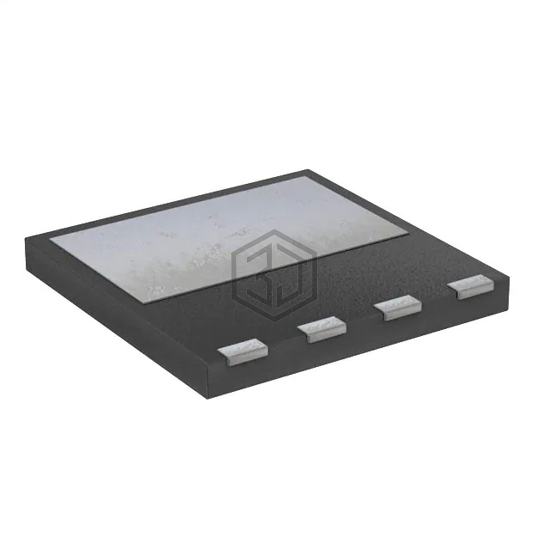

MOSFET N-CH 650V 30A 5DFN
TK099V65Z,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 650V 30A 5DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 4-VSFN Exposed Pad.
In Stock: 12,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 99mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1.27mA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2780 pF @ 300 V |
| FET Feature | - |
| Power Dissipation (Max) | 230W (Tc) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (8x8) |
| Package / Case | 4-VSFN Exposed Pad |
Submit your RFQ for TK099V65Z,LQ and get a quote within 24 hours.
